Design of Leaf Spring

In this paper, Power System Stabilizer (PSS) and Automatic Voltage Regulator (AVR) are coordinated to improve the transient stability of generator in power system. Coordinated design problem of AVR and PSS is formulated as an optimization problem. Particle Swarm Optimization (PSO) technique is an advanced robust search method by the swarming or cooperative behavior of biological populations mechanism. The performance of PSO has been certified in solution of highly non-linear objectives. Thus, PSO technique has been employed to optimize the parameters of PSS and AVR in order to reduce the power system oscillations during the load changing conditions in single-machine, infinite-bus power system. The results of nonlinear simulation suggest that, by coordinated design of AVR and PSS based on PSO technique power system oscillations are exceptionally damped. Correspondingly, it's shown that power system stability is superiorly enhanced than the uncoordinated designed of the PSS and the AVR controllers.

The leaf spring is a fundamental component of heavy vehicle suspension systems, providing crucial support and stability under varying loads and road conditions. Designed to withstand the rigors of heavy-duty applications, such as trucks, buses, and trailers, the leaf spring plays a pivotal role in ensuring safe and comfortable transportation of goods and passengers. The design process of a leaf spring for heavy vehicle suspension involves a meticulous balance of engineering principles, material science, and practical considerations. Engineers must carefully consider factors such as load capacity, deflection characteristics, fatigue life, and manufacturability to develop an optimal design that meets performance requirements while adhering to cost, weight, and space constraints.
Throughout its evolution, the leaf spring has undergone continuous refinement and innovation to adapt to evolving industry standards, regulatory requirements, and technological advancements. From traditional multi-leaf configurations to modern parabolic and tapered designs, the leaf spring continues to evolve to meet the ever-changing demands of heavy vehicle applications.
In this context, this paper aims to explore the methodology, design specifications, constraints, and best practices associated with leaf spring design for heavy vehicle suspension. By delving into the intricacies of leaf spring design, we seek to provide insights and guidance for engineers, researchers, and industry professionals involved in the development and optimization of heavy-duty suspension systems.

1.1 Objective
The main objective of leaf spring design for heavy vehicle suspension is to provide effective support, stability, and ride comfort for the vehicle under varying loads and road conditions.
1.2 Methodology
Designing a leaf spring for heavy vehicle suspension involves several steps:
Determine Vehicle Requirements: Understand the weight, load distribution, and intended use of the vehicle to determine the suspension requirements.
Material Selection: Choose appropriate materials for the leaf spring based on factors like strength, durability, and weight.
Calculate Load and Deflection: Determine the maximum load the spring will bear and the desired deflection characteristics. This involves considering factors like vehicle weight, payload, road conditions, and desired ride quality.
Design Geometry: Determine the shape, dimensions, and number of leaves for the spring. This includes considering factors like thickness, length, and curvature of the leaves.

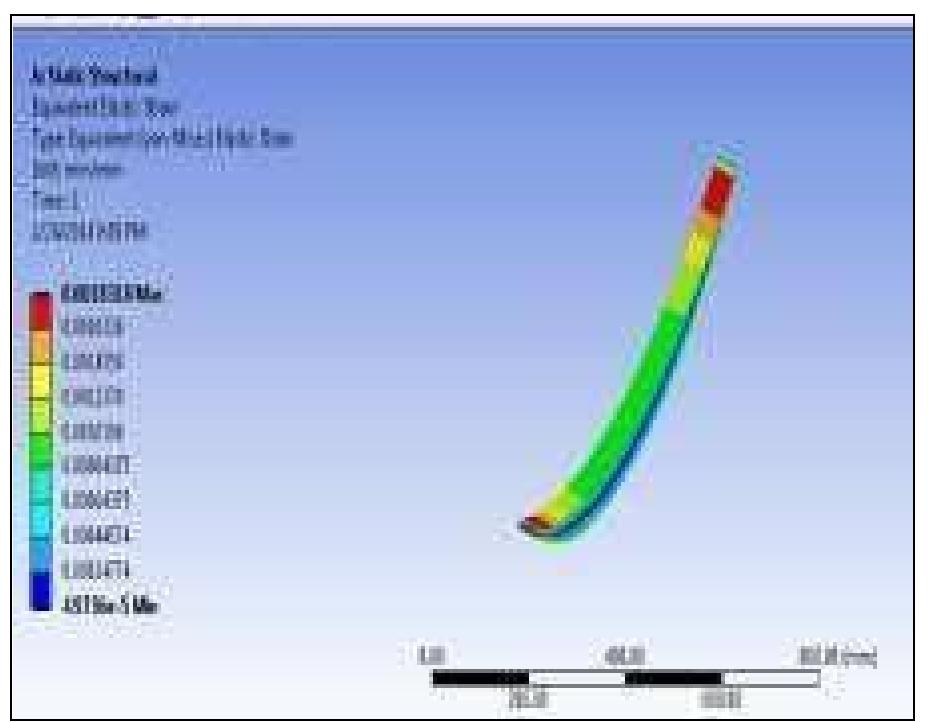

Stress Analysis: Perform stress analysis to ensure that the spring can withstand the anticipated loads without failure. This involves calculating stresses and deflections under various operating conditions.
Optimization: Iterate the design to optimize for weight, performance, and durability while meeting design constraints.
Prototype and Testing: Build a prototype of the leaf spring and subject it to various tests, including load testing, fatigue testing, and durability testing, to validate the design and ensure it meets performance requirements.
