Laboratory-scale reactor Research Papers

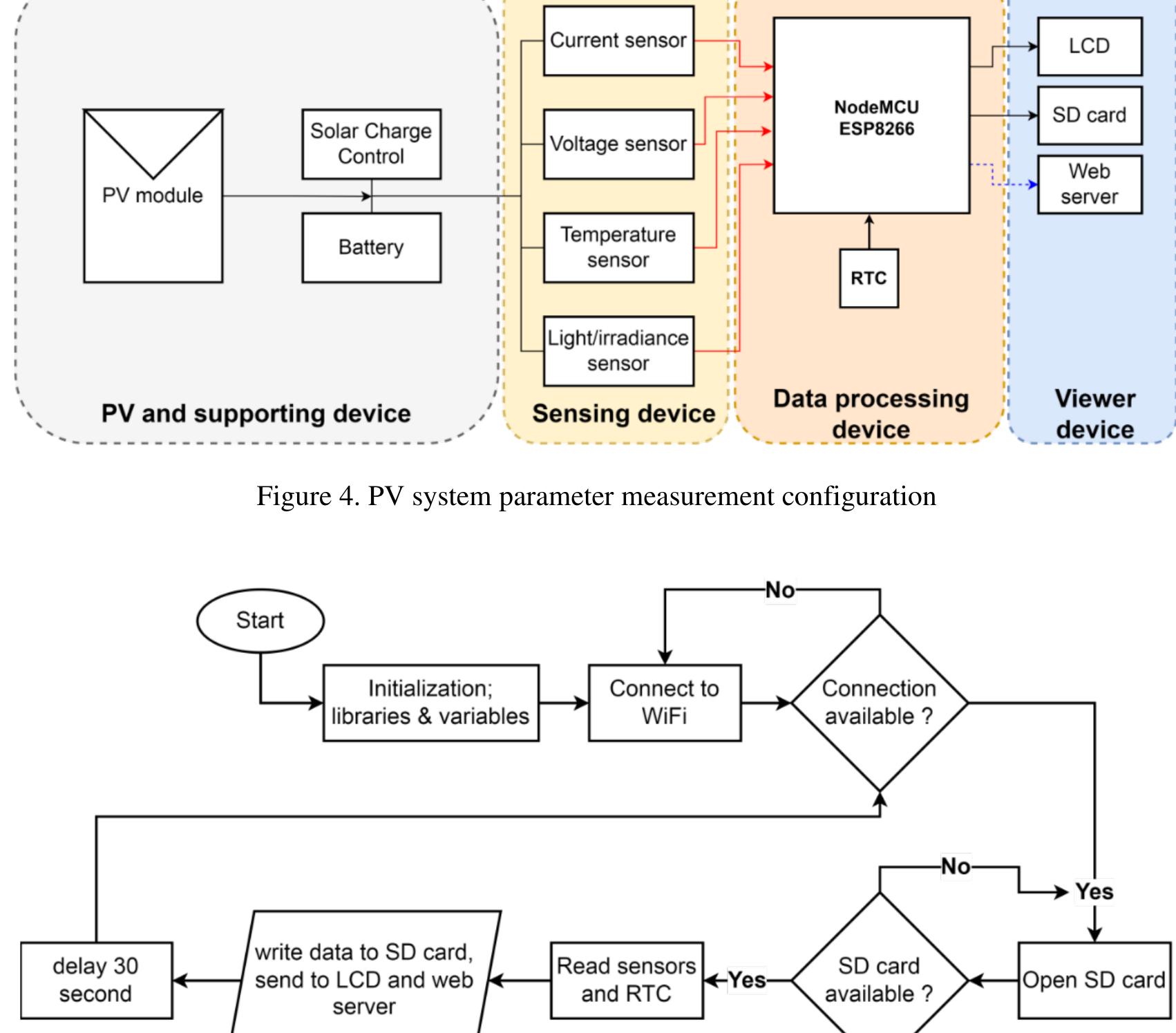

A laboratory scale IoT-based measuring of the solar photovoltaic parameters

2024, International Journal of Reconfigurable and Embedded Systems (IJRES)

Harvesting solar energy as a renewable energy source has received significant attention through serious studies that could be applied massively. However, the nonlinear nature of photovoltaic (PV) concerning the surrounding environment,... more

descriptionView Paper arrow_downwardDownload

Undershot Waterwheel Analysis Comparing Three Variations of the Laboratory Scale

by Agustina Kasa'

2024, Proceedings of the 4th Annual Conference of Engineering and Implementation on Vocational Education, ACEIVE 2022, 20 October 2022, Medan, North Sumatra, Indonesia

A waterwheel is a technology that has been used by people in rural areas to lift and distribute water to a higher base than water sources. The waterwheel has a relatively simple design, large diameter, high speed and high torque. However,... more

Figure 2. Laboratory scale undershot waterwheel model The design of the water channel on the undershot waterwheel can be seen in the imagt below:

After conducting experiments and data co ‘rom the research data of the water wheel und rariety of b ised was 8 and each measurement was taken 7 02 ms/d 0 d)=1m;1 ades (flat, curved and bent). In the .14 and to support data collection, 1 lection, the data obtained are then processed. ershot, data collection was carried out with a data collection process, the number of buckets times. The water height is varied starting from is known that the diameter of the waterwheel The radius of the waterwheel(r)= 0.5 m; The width of the blade of the waterwheel 1) = 0.07 m; Waterwheel blade height(t) = 0.04 m;length Bucket (p) = 0.11 m;diameter 3ucket(d) = 0.007 m; distance between blades n; accelera ion due to gravity (g) = 9.81 m/s’; t) = 0.21 m; the width of the wheel (1) = 0.07 Time (t)= 2 s; Bucket volume (Vb) = 0.00128 n?; Volume (V) = 0.0189 m?; wheel rotational speed (n) = 1.467 put/s; Channel width (1) = 15m; Wh eel radius (r) = 0.5 m Figure 3. Graph of the relationship between (a) the flow of water to the rotation of the waterwheel; (b) the flow rate of water to the ratio between efficiency and flow of water to the power of the waterwheel; (c) the flow rate of the water to the water discharge in the bucket; (d) water flow rate on water wheel efficiency

descriptionView Paper arrow_downwardDownload

A Data Acquisition System for Solar PV Module with Variable Load

by Gour Mazumder

2023, The Dhaka University Journal of Science

This paper describes the design, development and performance of a locally developed data acquisition system for solar PV module with variable load. The system can automatically change the operating point of a PV module and acquire the... more

Fig. 2. Signal Conditioning Circuit for Vpy f the active load would have been directly connected across the PV output, the short circuit current couldn’t be achieved, because the active load has some resistance even at hard saturation. Hence, a high ampere PS (power supply) has been used in series with the PV Module. As the active load increases the output current of the PV module, the current from the PS also increases. When the load current equals the sc of the PV module, Vpy, becomes zero. This Vpy is a differential voltage (difference of voltage between points A and B of Fig. 1), but the ADC needs a common mode voltage (with respect to ground). To do this, a differential voltage amplifier has been designed which is given below. The function of this circuit is two-fold. One is to convert the differential voltage Vpy into common mode voltage and to attenuate the high module voltage into a suitable value for

Fig. 1. Block diagram of the developed system Uno is the main controlling unit, the Current Sensing unit converts the current into voltage, the Variable Load (Active Load) changes the output current of the PV module and the Signal Conditioning unit provides all necessary preprocessing of all signals. In fact, the signal conditioning unit has many subunits. The design method of every section of the system is described in the following subheadings.

To measure the output current of the module, a current sensor, ACS712, has been used. This device uses Hall sensor and produces bipolar output voltage depending on the current direction. The output of this sensor has been processed by a conditioning circuit shown in Fig. 3. This circuit shifts the operating range of the current sensor from bipolar (-2.5V to +2.5V) to unipolar (OV — 5V). The gain of this circuit can be adjusted from 9 (nine) to 18 (eighteen) using S; and S, switches. This arrangement can increase o1 decrease the number of acquired data even for the same value of the current input. The output of this circuit is fed to channel-1 of A/D converter’. Fig. 3. Signal Conditioning Circuit for the Current Sensor Active Load

Fig. 5. Staircase voltage generator As a digital-to-analog converter, DAC0808IC has been used. It is a current summing DAC; hence a current to voltage converter (CVC) has been used at the output. The gain of the CVC can be varied by changing the value of the feedback resistor. Here, two 270Q resistors (Rg & R7) have been used as the feedback resistor (Fig. 5). R7 can be connected or disconnect by $3. Thus when S$; is open, a staircase with large step size and when 8; is closed, a staircase with smaller step size will be produced. An 8-bit ripple counter has been developed by connecting two 74L8293 ICs. The MSB output of the first counter works as the CLK input to the second counter and the CLK of the first counter comes from the controlling unit. The MR (Master Reset) inputs of the ICs are connected in parallel and used by the controlling unit as the RESET input. The 8- bit output of the counter has been applied to the DAC.

and the bit-size of the counter. To get precise data from the PV module the step-size should be as small as possible (Here 5mV). With an 8-bit counter, the maximum voltage will be 1.275V(5mV 255). Since the V; of the MOSFET is 4.5V; the staircase voltage cannot start the conduction of PV load current. This problem has been overcome by adding 4.5V at the output of the staircase as shown in the Fig. 7. The amount of threshold voltage at zero count can be changed by the potentiometer Rg. Fig. 7. Threshold voltage producing circuit

Fig. 8. Staircase voltage before and after using the Circuit of Fig. 7 The driver program of the whole system has been developed using Arduino IDE and uploaded into the Arduino board. The flowchart of the program is shown in Fig. 9. At the beginning of the data acquisition process of the PV module, the program sends a RESET pulse to the counter of the staircase generator, so that the active load turns OFF. This will give the open circuit condition of the PV module. Then it will read the module output current (Ipy) and the terminal voltage (Vpy). Ten samples of each variable are taken and averaged. The average values of Ipy and Vpy are assigned to the variables Ip, and Vp, and sent to the computer. Then, the program sends a clock pulse to the counter of the staircase generator so that the load current of the PV module increases by one step. Again, the value of Ip, and Vp, are determined and sent to the computer. This process is

All of the subsections described above have been interconnected in a PCB and a 10A 12V power supply has been made and incorporated into the system. The photograph of the complete system is shown in Fig.10. IV. Performance Study of the System

continued until the Counter recycles (Count=255) or Vpa becomes zero. Then the process stops sending another RESET pulse to the staircase generator. Fig. 9. Flowchart of the program

Fig. 12. Graph for calibration of current sensor Fig. 11. Graph for calibration of current sensor

The same test has been done for another 50 Wp module. The obtained graph is shown in Fig. 14 and the results are shown in Table II. Each of the graphs has been plotted by averaging every 10 raw data into a single data. From Table 1 and Table 2 it is found that the measured data are very close to the actual data.

appropriate positions of different resolution setting switches of the system have been set. Then the final test of the module has been done. The radiation level has been measured by a pyranometer and the area of the module has been measured manually. The acquired data have been converted using the conversion factor and plotted into a graph which is shown in Fig. 13. After calculating the data the following (Table I) results have been found.

Table 1. Parameters found for 30W p module

Table 2. Parameters found for the 50Wp module V. Conclusion
