Rotor Design Research Papers

Effect Of Different Configurations Of Mechanical Aerators On Oxygen Transfer And Aeration Efficiency With Respect To Power Consumption

by Samir Deshmukh

2022

This paper examines the use of mechanical aerator for oxidation-ditch process. The rotor, which controls the aeration, is the main component of the aeration process. Therefore, the objective of this study is to find out the variations in... more

Fig. 1 Variation of over all Oxygen Transfer Coefficient Kya with aerator Speed for different aerators It is quite evident from figure that the K,a values obtained with CBR aerator at speed ranging from 36 to 60 rpm, are much higher than that of other three aerators. Therefore CBR emerges as a potential aerator out of the other three configurations for any given speed.

Fig. 2 Variation of Dissolve Oxygen (mg/L) with Time for Different Depth of immersion for CBR Aerator Figure (2) shows the variation of increase in D.O concentration against time for CBR aerator. It can be easily identified that the maximum D.O concentration value of 8.2 mg/L can only be achieved by maintaining the 5.5 cm depth of immersion. Further increase or decrease in depth of immersion decreases the D.O concentration.

Figure (3) is a plot of depth of immersion with K,a and power, which signifies that with increase in depth of immersion, there is marginal rise in K,a value, but on other hand it suggests that with increase in depth of immersion the power consumption rises sharply, which is obvious because at larger depths the aerator is required to handle large water volume. Fig. 3 Influence of Depth of Immersion on Overall Oxygen Transfer Coefficient & Power (W)

Fig. 4 Variation of Dissolve Oxygen with Time for different Aerators at speed 36 RPM and 5.5 Depth of Immersion Effect of time of aeration on the dissolved oxygen level with different aerator configurations and at different speeds have been studied from figures (4),(5),(6) and (7). The depth of immersion is kept constant at 5.5 cm for all aerators. In figure (4), the variation of DO with Time for all the aerators at 36 rpm is shown.

Figure (6) shows that at 48 rpm the dissolved oxygen saturation concentration value of 8.2 mg/L is achieved in 30 min, where as there is no apparent improvement in the saturation values of CRWR and CFR. Fig. 6 Variation of Dissolve Oxygen with Time for different Aerators at speed 48 RPM and 5.5 Depth of Immersion

Fig. 5 Variation of Dissolve Oxygen with Time for different Aerators at speed 42 RPM and 5.5 Depth of Immersion Similar trend is observed with figures (8),(9) and(10) which are plotted for speeds 42, 48 and 60 rpm respectively.

Fig. 7 Variation of Dissolve Oxygen with Time for different Aerators at speed 60 RPM and 5.5 Depth of Immersion Figure (7), illustrates that the CBR aerator again reaches the value of 8.2 mg/L in 30 min at speed of 60 rpm. CRWR, CFR and Brush aerator attains 80% to 90% of saturation concentration value but time required is higher than 45 min. Therefore it can be seen that as the speed increases the time required reaching the maximum dissolved oxygen saturation concentration value decreases. In other words with increase in speed less time is required to attain maximum value of dissolved oxygen saturation concentration.

Fig. 8 Variation of K,a(h) & Aeration Efficiency(kgO,/kWh) with Rotor Type & Speed of aerator (RPM) Variation of AE and K,a for different blade tip angles and speed:

Fig. 9 Variation of K,a(h"') & Aeration Efficiency (kgO,/kWh) For different blade angles & Speed of aerator(rpm) Three configurations were developed by changing the blade tip angles (27°, 47° and 60°) and their performance was evaluated for K,a and AE with respect to speed. Each configuration was tested for the aerator speed of 42, 48 and 60 rpm and the plot was obtained. From figure (9) it is observed that at 48 rpm and 47° blade tip angle the optimum value of K,a is observed to be 10.33 h' for which the CBR aerator recorded the highest value of AE, which is to the tune of 2.269 kgO./kWh. This is because of the AE is mainly dependent on power and as stated earlier the power required increases with increase in speed and depth of immersion. From figure it can be seen that even though the values of K,a at 60 rpm and for blade tip angles of 27°, 47° and 60° are more than that of 48

Fig. 10 Effect of Speed on Aeration efficiency for CBR aerator at depth of immersion of 5.5 cm

Fig. 12 Relationship between Observed power values (W) & Calculated power values (W) Fig. 11 Relationship between Observed Overall Transfer coefficient (K,a) & Calculated Overall Transfer coefficient (K;a).

It has been estimated that the simulation equation (1) and (2) predict the values of K,a and power with an average standard error of estimation of 0.0164 and 7.66 respectively and with R? values of 0.979 and 0.989 respectively, when compared with experimentally determined values. Thus equations (1) and (2) are justifiable by taking into consideration all of the experimental errors themselves. Therefore above equations may be used with confidence for predicting the Kya and power (P) and can be considered as design equations for CBR aerator.

Ky .@ VALUES OBTAINED FOR DIFFERENT SPEEDS FOR VARIOUS CONFIGURATIONS OF AERATORS tatiana © laa wii” Satie * itis Plot for variation of Kya with speed for all configurations of aerator is represented in figure (1). TABLE I

PERFORMANCE OF CBR AERATORS W.R.T. Kya , POWER AND A.E. FOR DIFFERENT BLADE ANGLES AND SPEEDS TABLE-II

MAXIMUM AERATION EFFICIENCY FOR TYPICAL AERATORS.[13]

descriptionView Paper arrow_downwardDownload

Drainage of a Water Tank with Pipe Outlet Loaded by a Passive Rotor

by Mohamed Elgamal

2022, Water

The optimal design of pipe outlets is an essential objective for many engineering projects. For the first time, this paper reports the results of a laboratory investigation on the effect of using a passive rotor (added at the pipe outlet)... more

descriptionView Paper arrow_downwardDownload

Design and Mechanism Analysis of Paddlewheel Aerator with Movable Blades

by Samsul Bahri

2021, IOP Conference Series: Materials Science and Engineering

The successful of intensive aquaculture is strongly influenced by the ability of the farmers to overcome the deterioration of water quality. The problem is low dissolved oxygen through aeration process. The aerator device which widely... more

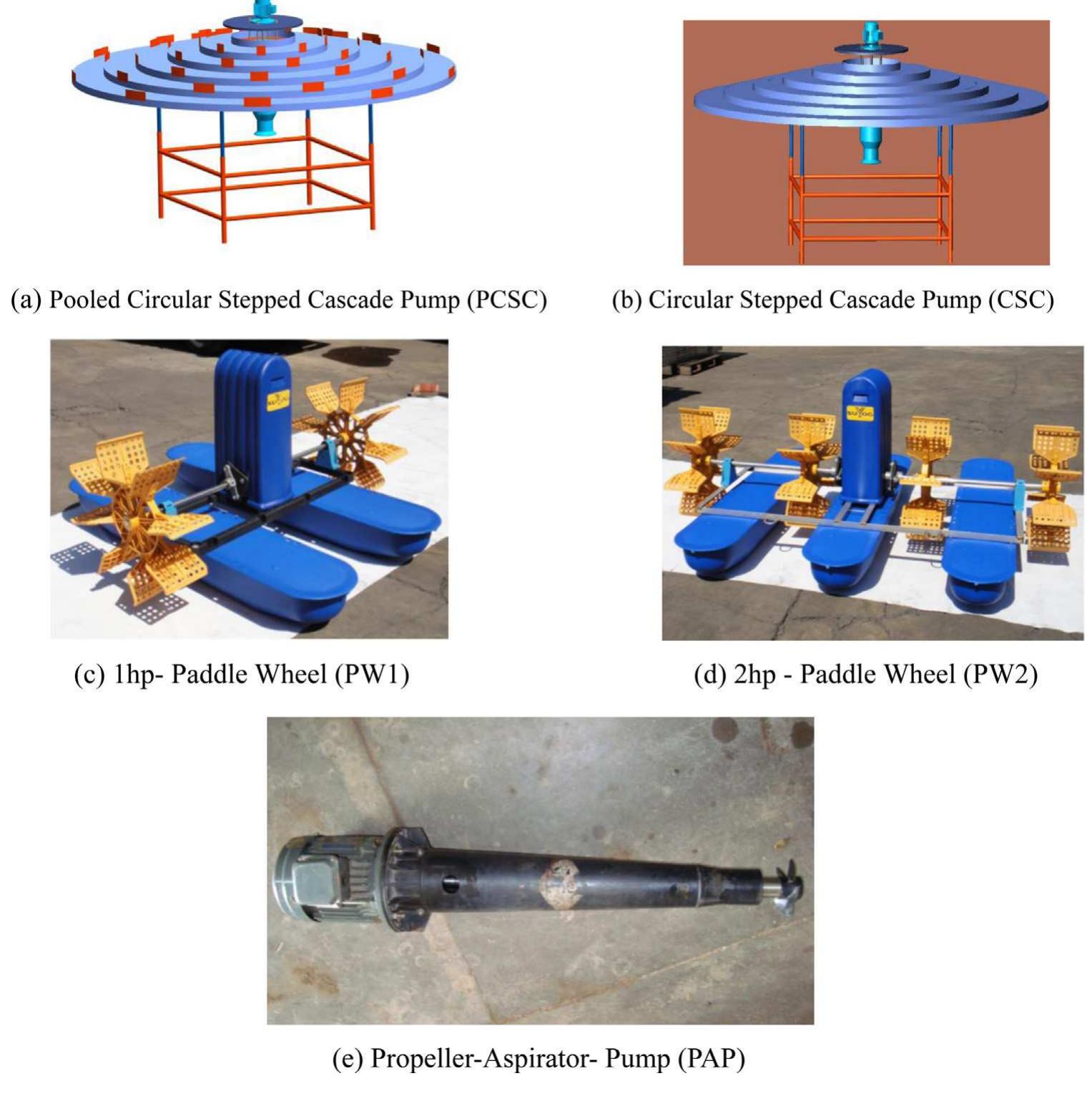

Figure 1. Paddlwheel aeator based of Taiwan design Various models of paddle wheel aerator are offered in market. Aerator based on Taiwan design is widel} used by consumers due to affordable price, light in weight and corrosion-resistant but has low efficiency as shown Figure 1 [1][5]. Aerator that was designed and fabricated by Taiwan has SAE (standar« aeration efficiency) value of 1.063 kg O2 kW h" [6]. Bhuyar et al. designed aerator with SAE value 2.269 kg Or kWh’ [7]. The most appropriate paddle wheel aerator was designed by Moore and Boyc with SAE value 2.54 kg O2 kWh''. Some of fabrications use aerator design with specification 2.25-7.: kW and SOTR 17.4- 23.2 kg O2 h" and average value of SAE was 2.2 kg O2 kW h' [8].

Figure 2. Torque measurement scheme 2.2.2. Power measurement. Paddlewheel power measurement was done by measuring the electrical power consumption of electric motors using Ammeter (DO2A) which was connected to an electrical outlet. Reading the power measurement value (Watt) was done by using a digital video camera recording on display Ammeter. Rated power was taken on the average value that often was showed from the reading video playback recording for each treatment testing.

Figure 3. Wheel structure with movable blade The wheel structure consisted of two main components i.e.stationary and rotary component as shown it Figure 3.

The maximum displacement of follower for one rotation 50 mm with angle of rotation 125° is shown in Figure 5. The maximum velocity of follower was 45.84 m/s as shown in Figure 6.

The constant acceleration was 6.09 m/s” as shown in Figure 7.

3.2.2. Angle of pressure. Angle of pressure determines the smoothness of cam movement. The analysis of angle of pressure was illustrated in Figure 3. Angle of pressure (@) for every angular position was equated as follows: IOP Conf. Series: Materials Science and Engineering 532 (2019) 012011 doi:10.1088/1757-899X/532/1/012011

Based on the calculation, some of spring data were collected, including installed length, operating length, operating force, springs material, wire diameter, average diameter, inside diameter, outside diameter, free length, number of coils and allowable shear stress for blade-opening springs. The magnitude was 75 mm, 25 mm, 2.45 N, 49.05 N, chromium-vanadium A231, 2 mm, 2 mm, 10.5 mm, 14.5 mm, 80 mm, 12 coils and 922.74 MPa, respectively. The magnitude for blade-closing spring was 124 mm, 38 mm, 2.45 N, 264.50 N, chromium-vanadium A231, 2 mm, 2 mm, 8 mm, 125 mm, 130 mm, 20 coils and 815.75 MPa, respectively. IOP Conf. Series: Materials Science and Engineering 532 (2019) 012011 doi:10.1088/1757-899X/532/1/012011

Figure 9. Free body diagram for analysis of angle of pressure IOP Conf. Series: Materials Science and Engineering 532 (2019) 012011 doi:10.1088/1757-899X/532/1/012011 By neglecting F; and Feat the last 3 equations, normal force of cam acting on follower was:

Equation of cam velocity is written as follows: Equation of cam acceleration is written as follows:

Table 1. Pressure angle of follower The largest angle of pressure between cam and follower was 41.40°. This magnitude was too large and not necessary for cam-follower mechanism as it required high force and caused mechanism failure that led to machine damage.

The results of normal force, vertical force and horizontal force are shown in Table 2. The maximur torque required to activate blade mechanism was 80.09 N-m.
