LLC resonant converter

description9 papers
group5 followers
lightbulbAbout this topic

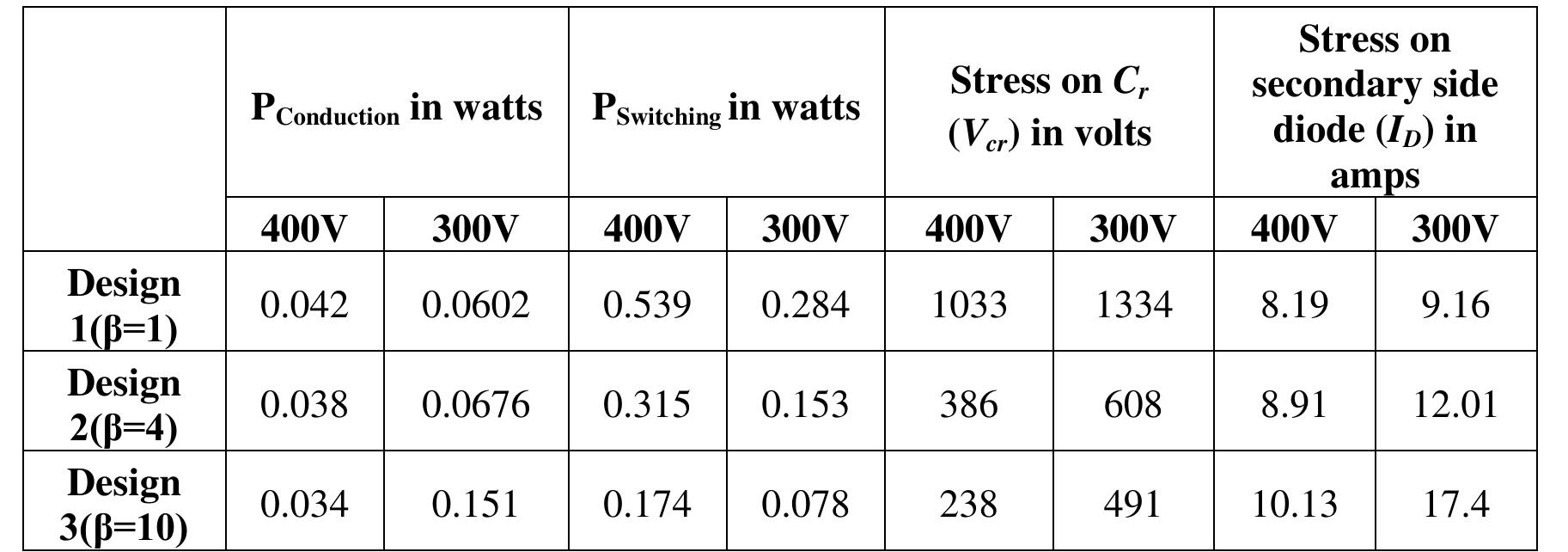

An LLC resonant converter is a type of power converter that utilizes a resonant circuit comprising inductors and capacitors to achieve high efficiency and low electromagnetic interference during the conversion of electrical energy. It operates by resonating at a specific frequency, allowing for soft-switching techniques that minimize switching losses.
lightbulbAbout this topic
An LLC resonant converter is a type of power converter that utilizes a resonant circuit comprising inductors and capacitors to achieve high efficiency and low electromagnetic interference during the conversion of electrical energy. It operates by resonating at a specific frequency, allowing for soft-switching techniques that minimize switching losses.
An LLC Resonant Converter with Double Resonant Tanks for Wide-Input-Voltage-Range Applications
by Ezekiel Bokolonga

2025, World Congress on Electrical Engineering and Computer Systems and Science

This paper presents an LLC resonant converter with double resonant tanks configured for a wide-input-voltage range application. The converter comprises four power switches (MOSFETs), a pair of resonant tanks with LLC configuration, and... more
descriptionView Paperarrow_downwardDownload
An LLC Resonant Converter with Double Resonant Tanks for Wide-Input-Voltage-Range Applications
by Ezekiel Bokolonga

2024, Proceedings of the 3rd World Congress on Electrical Engineering and Computer Systems and Science

This paper presents an LLC resonant converter with double resonant tanks configured for a wide-input-voltage range application. The converter comprises four power switches (MOSFETs), a pair of resonant tanks with LLC configuration, and... more
LCC and LLC type resonan conver ers solve the issue depicted by series and parallel configurations, however, both can still portray important drawbacks. Since an optimized design for a resonant converter normally operates close-to/at the resonant frequency, varying the situation when operating at high input vo input voltage also varies the switching frequency, which gives the LCC topology a bad tage. LCC type converter therefore not suitable for this condition since its efficiency degrades due to conduction and switching losses. With this drawback, LLC resonant converter gains the interest and is featured in most recent studies in several three-level and double resonant different types of configurations, ranging from full-bridge, half-bridge, interleaved, anks [2] - [9]. Fi ee a a, i; ee, ee nn i; ik’ c. See Fy ee, ey ee Sy ee, ee ey ee, Sc ee, | en cee on 22k en
Fig. 3: Mode | operating circuits of the proposed converter: (a) Mode 1-I; (b) Mode 1-II; (c) Mode 1-H]; (d) Mode 1-IV.
Fig. 4: Mode 2 operating circuits of the proposed converter: (a) Mode 2-I; (b) Mode 2-II; (c) Mode 2-III; (d) Mode 2-IV. 4 oe Mode 2-II [ti — tz]: This interval starts with magnetizing currents (izm1 and izn2) equal to the resonant currents (iz,1 and iz2) at ti. Diodes D; and D3 on the secondary side both reverse biased, therefore turned off respectively with ZCS. Both magnetizing inductors (Lm; and Enz) involved in resonance with the resonant elements (Lr, Ci, L2, and C2), leaving the secondary side isolated from the primary side. It is the output capacitor C,.; that supplied power to the load. This interval ends with switches S; and Sy turns off at f2, allowing resonant currents to discharge and charge both the output capacitors of switches S> and S23 (Cy.0 and Cy.63) and switches S; and Sa (Coes) and Cocca).
Fig. 5: (a) Equivalent circuit with AC load. (b) Mode 1 AC equivalent circuit. (c) Mode 2 AC equivalent circuit.
In the circuit definitions for (1) and (2), the equivalent resistance Ra- used in Modes 1 and 2 analyses are different, however the value of Q obtained for each mode is the same due to the characteristic impedance of the resonant tank changes with respect to each mode of operation. The turn’s ratio n (N,/N;) of the transformers remains the same in either of the modes.
The performance and operating principles of the proposed converter was verified by a 480 W prototype using the components shown in Table 1. A switching frequency of 110 kHz was used to regulate the output voltage at 35 V, with a fixed duty ratio of 50% on each respective switches, depending on the type of mode used. Combining the input voltages specified in table J for each mode gives the input voltage range of 115 — 230 V for the experiment. This proves the ability of the overall design to operate at an input voltage range of 115 — 460 V, with nominal inputs of 190V and 380V for Modes 1 and 2. Due to limitation of DC input power supply, the prototype was tested only for 115 V (Mode 1) and 230 V (Mode 2) input voltages, giving an output power of 255 W. However, these two inputs provide enough information to validate the design specification. Note that for the overall design, Modes 1 and 2 minimum input voltages are 115 V and 230 V, which is also the voltage levels used in the experiment for each respective mode. Fig. 6 and 7 depicts the key steady state experimental waveforms obtained for the two input voltage levels. Fig. 6 shows the key steady state experimental waveforms of Mode | voltage. By looking at the waveforms in Fig. 6(a), S2 and S3 operate under ZVS condition. Fig. 6(b) shows the waveforms of resonant voltage and current of capacitors (C;1 and C,2) and inductors (L,; and L,2) of t he resonant tanks. The waveforms illustrate the sinusoidal swing of resonant currents iz,1 and iz,2 in opposite directions respectively. This indicates the charging and discharging of resonant capacitors, which depicts symmetrical but due to the resonan he secondary diodes conducted in he distribution of power twice every cycle to the output. The resonating behaviour of these waveforms are expected to be components miss-matched, the amplitudes and phases are not identical. In response, the waveforms of the rectifier diode currents in the secondary side are not perfectly coupled, as shown in Fig. 6(c). However, expected combination. The drain-source voltage of switch S3 and diode current ip; are compared in Fig. 6(c) to show tha ZCS of ip: has been achieved. Fig. 6(d) shows the primary and secondary voltages of ransformers TX, and TX2. From the waveforms, opposite rise and fall of the voltages have been obtained respectively with he secondary side voltages being scaled down by approximately 2 for both primary voltages. With the output voltage of 35 V, the maximum efficiency of the converter for Mode 1 is 96.99%.
Fig. 7 shows the key steady s and Fig. 7(b), Si, S2, S3 and S4 operate under ZVS condition. However, from Fig. 7(b), there is ringing on Vasz and Vas3 due to the output capacitances of S2 and S3 being resonating with the parasitic inductances of the circuit, which also affects Vas1 and Vasa being unbalanced. Fig. 7 inductors (Z,1 and L,2) of both res iz2 in the same direction respectively. This indicates simultaneous charging and discharging of resonant capacitors, which depicts the distribution of power symmetrical, which illustrates ba ate experimental waveforms of Mode 2 voltage. As shown in the waveforms of Fig. 7(a c) shows the waveforms of resonant voltage and current of capacitors (C1 and C2) and pective tanks. The waveforms illustrate the sinusoidal swing of resonant currents iz,1 and twice every cycle to the load. The resonating behaviour of these waveforms is almos ancing mechanism of the converter. In response, the waveforms of the rectifier diode currents in Fig. 7(d) and Fig. 7(e) are likely to be coupled and conducted in expected combination. The drain-source voltage of switches S3 and S4 are compared with diode currents ip; and ips to illustrate the effect of ZCS. Fig. 7(f) shows the primary and secondary voltages of transformers TX; and TX2. From the waveforms, simultaneous rise and fall of the voltages have been obtained respectively with the secondary side voltages being scaled down by approximately 2 for V,,i1 and
(f) Primary and secondary voltages of the transformers.
Table 1: Component list.
descriptionView Paperarrow_downwardDownload
An LLC Resonant Converter with Double Resonant Tanks for Wide-Input-Voltage-Range Applications
by Ezekiel Bokolonga

2024, World Congress on Electrical Engineering and Computer Systems and Science

This paper presents an LLC resonant converter with double resonant tanks configured for a wide-input-voltage range application. The converter comprises four power switches (MOSFETs), a pair of resonant tanks with LLC configuration, and... more
LCC and LLC type resonan conver ers solve the issue depicted by series and parallel configurations, however, both can still portray important drawbacks. Since an optimized design for a resonant converter normally operates close-to/at the resonant frequency, varying the situation when operating at high input vo input voltage also varies the switching frequency, which gives the LCC topology a bad tage. LCC type converter therefore not suitable for this condition since its efficiency degrades due to conduction and switching losses. With this drawback, LLC resonant converter gains the interest and is featured in most recent studies in several three-level and double resonant different types of configurations, ranging from full-bridge, half-bridge, interleaved, anks [2] - [9]. Fi ee a a, i; ee, ee nn i; ik’ c. See Fy ee, ey ee Sy ee, ee ey ee, Sc ee, | en cee on 22k en
Fig. 3: Mode | operating circuits of the proposed converter: (a) Mode 1-I; (b) Mode 1-II; (c) Mode 1-H]; (d) Mode 1-IV.
Fig. 4: Mode 2 operating circuits of the proposed converter: (a) Mode 2-I; (b) Mode 2-II; (c) Mode 2-III; (d) Mode 2-IV. 4 oe Mode 2-II [ti — tz]: This interval starts with magnetizing currents (izm1 and izn2) equal to the resonant currents (iz,1 and iz2) at ti. Diodes D; and D3 on the secondary side both reverse biased, therefore turned off respectively with ZCS. Both magnetizing inductors (Lm; and Enz) involved in resonance with the resonant elements (Lr, Ci, L2, and C2), leaving the secondary side isolated from the primary side. It is the output capacitor C,.; that supplied power to the load. This interval ends with switches S; and Sy turns off at f2, allowing resonant currents to discharge and charge both the output capacitors of switches S> and S23 (Cy.0 and Cy.63) and switches S; and Sa (Coes) and Cocca).
Fig. 5: (a) Equivalent circuit with AC load. (b) Mode 1 AC equivalent circuit. (c) Mode 2 AC equivalent circuit.
In the circuit definitions for (1) and (2), the equivalent resistance Ra- used in Modes 1 and 2 analyses are different, however the value of Q obtained for each mode is the same due to the characteristic impedance of the resonant tank changes with respect to each mode of operation. The turn’s ratio n (N,/N;) of the transformers remains the same in either of the modes.
The performance and operating principles of the proposed converter was verified by a 480 W prototype using the components shown in Table 1. A switching frequency of 110 kHz was used to regulate the output voltage at 35 V, with a fixed duty ratio of 50% on each respective switches, depending on the type of mode used. Combining the input voltages specified in table J for each mode gives the input voltage range of 115 — 230 V for the experiment. This proves the ability of the overall design to operate at an input voltage range of 115 — 460 V, with nominal inputs of 190V and 380V for Modes 1 and 2. Due to limitation of DC input power supply, the prototype was tested only for 115 V (Mode 1) and 230 V (Mode 2) input voltages, giving an output power of 255 W. However, these two inputs provide enough information to validate the design specification. Note that for the overall design, Modes 1 and 2 minimum input voltages are 115 V and 230 V, which is also the voltage levels used in the experiment for each respective mode. Fig. 6 and 7 depicts the key steady state experimental waveforms obtained for the two input voltage levels. Fig. 6 shows the key steady state experimental waveforms of Mode | voltage. By looking at the waveforms in Fig. 6(a), S2 and S3 operate under ZVS condition. Fig. 6(b) shows the waveforms of resonant voltage and current of capacitors (C;1 and C,2) and inductors (L,; and L,2) of t he resonant tanks. The waveforms illustrate the sinusoidal swing of resonant currents iz,1 and iz,2 in opposite directions respectively. This indicates the charging and discharging of resonant capacitors, which depicts symmetrical but due to the resonan he secondary diodes conducted in he distribution of power twice every cycle to the output. The resonating behaviour of these waveforms are expected to be components miss-matched, the amplitudes and phases are not identical. In response, the waveforms of the rectifier diode currents in the secondary side are not perfectly coupled, as shown in Fig. 6(c). However, expected combination. The drain-source voltage of switch S3 and diode current ip; are compared in Fig. 6(c) to show tha ZCS of ip: has been achieved. Fig. 6(d) shows the primary and secondary voltages of ransformers TX, and TX2. From the waveforms, opposite rise and fall of the voltages have been obtained respectively with he secondary side voltages being scaled down by approximately 2 for both primary voltages. With the output voltage of 35 V, the maximum efficiency of the converter for Mode 1 is 96.99%.
Fig. 7 shows the key steady s and Fig. 7(b), Si, S2, S3 and S4 operate under ZVS condition. However, from Fig. 7(b), there is ringing on Vasz and Vas3 due to the output capacitances of S2 and S3 being resonating with the parasitic inductances of the circuit, which also affects Vas1 and Vasa being unbalanced. Fig. 7 inductors (Z,1 and L,2) of both res iz2 in the same direction respectively. This indicates simultaneous charging and discharging of resonant capacitors, which depicts the distribution of power symmetrical, which illustrates ba ate experimental waveforms of Mode 2 voltage. As shown in the waveforms of Fig. 7(a c) shows the waveforms of resonant voltage and current of capacitors (C1 and C2) and pective tanks. The waveforms illustrate the sinusoidal swing of resonant currents iz,1 and twice every cycle to the load. The resonating behaviour of these waveforms is almos ancing mechanism of the converter. In response, the waveforms of the rectifier diode currents in Fig. 7(d) and Fig. 7(e) are likely to be coupled and conducted in expected combination. The drain-source voltage of switches S3 and S4 are compared with diode currents ip; and ips to illustrate the effect of ZCS. Fig. 7(f) shows the primary and secondary voltages of transformers TX; and TX2. From the waveforms, simultaneous rise and fall of the voltages have been obtained respectively with the secondary side voltages being scaled down by approximately 2 for V,,i1 and
(f) Primary and secondary voltages of the transformers.
Table 1: Component list.
descriptionView Paperarrow_downwardDownload
Grid-connected photovoltaic micro-inverter with new hybrid control LLC resonant converter
by huang qisheng

2023, IECON 2016 - 42nd Annual Conference of the IEEE Industrial Electronics Society

 Users may download and print one copy of any publication from the public portal for the purpose of private study or research.  You may not further distribute the material or use it for any profit-making activity or commercial gain ... more
Fig.1 System block diagram of PVMI
Zero voltage switching (ZVS) for the primary side switches and zero current switching (ZCS) for the secondary side diodes can be realized via resonance existing in LLC resonant converter. As shown in Fig. 2, vertical and horizontal axis represents the switching frequency f;, and the phase-shift duty cycle D respectively. Power can be converted efficiently under narrow-range input voltage with control I 1.e. traditional PFM, where the voltage gain is only regulated with f, | 71. Great challenges in magnetic components, system control, and system stability occur when applying control I to PV panels because of the wide-range switching frequency resulted from wide-range input voltage of PV panel and wide-range load variation. Efficient power conversion under wide-range input voltage can be realized through applying control II. As depicted in Fig.2, PFM is adopted in a region where f, is smaller than a specific value, while higher f; for regulation is needed, PS-PWM is used , and so f; range is limited. The efficiency, however, will decrease under PS-PWM on occasions of high input voltage or light load due to the large D which tending to result in the increases of internal circumfluent current loss. Fig.2 Control scheme for full-bridge LLC resonant converter
2. The effect of PS-PWM on limiting switching frequency will be weakened with the increases of Q. It means PFM control performs better than PS-PWM control under heavy loads. Fig.3. fvs. Q and D @ k=3.7 under PFM+PS-PWM mode
Fig.4 Program flowchart of LLC converter with hybrid control The program flowchart of the hybrid control is shown in Fig.4, which is described step-by-step as following. The output voltage Vi; of the LLC resonant converter is compared with the reference voltage in analog to digital (AD) interrupt; thus obtain error Voe70,. The converter will be controlled with PFM if the new calculated switching frequency f; through PI controller is smaller than resonant frequency /;. If not, the PS-PWM+PFM control mode will be activated. Then a modification of phase-shift duty cycle 4D can be calculated according to frequency error which equaling to the differences between f,and f;. Finally, f; and D will be updated by adding AD to a reference phase-shift duty cycle Dpase which had been pre-stored in the register.
Fig.6 M vs. k and Q under PFM+ PS-PWM mode As shown in Fig.5, Jo rms’, io of VS. k and Q in the LLC resonant converter operating PFM mode with f=0.8 are plotted, respectively. Here Jg ms and ig oare normalized as Jo jms" and ig of - It is shown that large k and Q will achieve small currents, then resulting in the low switches loss. And M will be decreased with increasing of & and Q, resulting in wider switching frequency range. Under PFM+PS-PWM mode, the currents behavior is the same like that of PFM mode. In contrast, its M will be increased with increasing of k, as shown in Fig.6. That is to say, large & will not result in wider switching frequency range. Therefore, in the design k and Q of resonant tank, only effect of A and Q on M under PFM control mode is considered.
Fig.7 k, O area meeting the voltage gain and ZVS k and Q, shown as overlapped parts in Fig.7, satisfies both Inequality (2) and (4) . Then finding & and Q to maximize the multiplication of & and Q can achieve optimal design.
f=83.8kHz @ input voltage 39V (under PFM +PS-PWM mode) Using the control scheme and design parameters, simulations of the PVMI are carried. Some key waveforms are shown in Fig.8. vgs, Vas, ip, Vp, V4B, itr represent drive signal of MOSFET, voltage across drain and source, current and voltage of rectifier diode, voltage across A and B in Fig.1, current of resonant inductor, respectively. It is can be seen that, the LLC converter operates with resonant frequency of 65.5 kHz at nominal input voltage 31V and full-load, while operates with PFM+PS-PWM mode, and f;= 83.8 kHz, D=0.2 at input voltage of 39V and full-load. The switching frequency ranges from 47.3 kHz to 111 kHz. The MOSFETs operate with ZVS under full input voltage and loads. It should be noted that ZCS for the diodes, which is in favor of suppressing voltage spike, is also achieved even when f; is higher than f,. The reason is hat the diodes current lead because of phase shift. This ZCS behavior is great different with that under single PFM control .The simulation has good agreement with the design. Fig.8.Key waveforms of LLC converter vs. input voltage
f=65.5kHz@ input voltage 31V (under PFM mode)
4.2 PVMI prototype
fs = 49.1kHz @ input voltage V,y= 25V, output power P,=250W
Jf: =63.6kHz @ input voltage V,,= 31V, output power P,=250W
The MPPT key waveforms are given in Fig.13. Under the test, the Regatron TCP.16.800.400.PV is used as PV simulator. The maximum power point is set to Pyp=250W and Vyp=36V. vpy, ipy , ppv iS output voltage, current and power of the
As shown in Fig.10, efficiency of the full bridge LLC converter is above 96% within MPPT voltage range from 25 to 39V and peak efficiency is high up to 97.7%. Fig.10 Efficiency of the LLC converter vs. V,,, and P,
simulator, and ig,iqis the injected current of the inverter. The test shows that the inverter can search to the maximum power point quickly, and has good MPPT accuracy up to 99.3%. Fig.12 efficiency of the PVMI vs. V,@ Vgrid=220Vac
Fig. 13 MPPT key waveform @ Pyp=250W, Viyp=36V V. Conclusion The PVMI will meet more challenge of achieving high efficiency because of wide-range input voltage, A PVMI with two high-frequency power stages is proposed, and the full bridge LLC resonant converter with hybrid control is used for the first power stage to meet PV wide range input voltage. The LLC resonant converter operates PFM mode when switching frequency is lower than the resonant frequency; otherwise, it
descriptionView Paperarrow_downwardDownload
Multi-phase interleaved LLC-SRC and its digital control scheme
by Hee-Jun Kim

2022, SPEEDAM 2010

This paper proposes a new 3-phase interleaved LLC resonant DC-DC converter and its control scheme. The proposed circuit consists of three conventional interleaved LLC resonant DC-DC converters and each converter operates with π/3 of phase... more
descriptionView Paperarrow_downwardDownload
A ripple reduction method for a two stages battery charger with multi-winding transformer using notch filter
by Haimeng Wu

2022, 2017 IEEE 12th International Conference on Power Electronics and Drive Systems (PEDS)

This paper presents a two-stage battery charger consisting of a bridgeless Totem-pole power factor correction (TP-PFC) circuit and a full bridge converter with a multiwinding transformer. By using this transformer the cell equalizing... more
descriptionView Paperarrow_downwardDownload
ZVS Auxiliary Circuit for a 10 kW Unregulated LLC Full-Bridge Operating at Resonant Frequency for Aircraft Application
by Miroslav Vasic

2022, Energies

In modern aircraft designs, following the More Electrical Aircraft (MEA) philosophy, there is a growing need for new high-power converters. In this context, innovative solutions to provide high efficiency and power density are required.... more
descriptionView Paperarrow_downwardDownload
Hydrogen production system with fuzzy logic-controlled converter
by Salih NACAR

2021, TURKISH JOURNAL OF ELECTRICAL ENGINEERING & COMPUTER SCIENCES

Electrolyte current must be controlled in the water electrolysis systems. For this purpose, the power converter for the cell stack of the electrolyzer used in industrial hydrogen production is realized. A series resonant converter, which... more
descriptionView Paperarrow_downwardDownload
PARTICLE SWARM OPTIMIZATION BASED PID CONTROLLER FOR MPPT
by Petchinathan Govindan

2021, International Journal of Mechanical Engineering and Technology

This work manages an enhanced (NOSLC) which permits signi converter gives high negative output by utilizing the Voltage lift technique. contribution to the converter is given by Photovoltaic module. The PV cells must be worked at their... more
descriptionView Paperarrow_downwardDownload
COMPUTATIONALLY EFFICIENT ROBUST MODEL PREDICTIVE CONTROL OF MAGNETIC SUSPENSION SYSTEMS
by IAEME Publication

2021, IAEME PUBLICATION

Robust model predictive control (MPC) of a general magnetic suspension system (MSS) is analyzed. Tight positioning requirements in the presence of constraints makes MPC a promising control technique for this system. While inherent... more
descriptionView Paperarrow_downwardDownload
COMPUTATIONALLY EFFICIENT ROBUST MODEL PREDICTIVE CONTROL OF MAGNETIC SUSPENSION SYSTEMS
by IAEME Publication

2021, IAEME PUBLICATION

Robust model predictive control (MPC) of a general magnetic suspension system (MSS) is analyzed. Tight positioning requirements in the presence of constraints makes MPC a promising control technique for this system. While inherent... more
descriptionView Paperarrow_downwardDownload
PERFORMANCE ANALYSIS OF LLC RESONANT CONVERTER INCORPORATING PI FUZZY AND NEURAL CONTROLLERS
by IAEME Publication

2021, IAEME PUBLICATION

The existing literature predominantly concentrates on the design of the modified LLC type of resonant converter and the implementation of state space modeling. In this paper, several performance inquiries of PI, Fuzzy and Neural control... more
Fig 1. Circuit diagram of modified LLC Resonant - Boost Converter
Figure 2 Block diagram of LLC Resonant Converter Fed Resistive Load using PI Controlle The Proportional integral (PI) controller is amongst the conventional controllers. It is mostly used to control the speed. The major feature of the PI controller is the capability to keep constant zero steady-state error. The combination of PI is essential to raise the speed of the system response and to reduce the steady-state error. The circuit errors are reduced by trial and error method. The controlled signals are given to RC and Linear transformer [15]. The Pl controllers are a special case; they are usually used for controlling various systems. It has some errors such as proportional and integral errors. Then the output is increased by terms of proportional constant Kp. The integral error also affects the output values [16-17].The output is increased in terms of integral constant Kj. The gain K,and K; are correcting ports to modify the preferred output response. The PI controller has the advantages of increasing system stability. Figure 2 Shows the Block diagram of LLC Resonant Converter Fed Resistive Load using PI Controller.
Figure 3 Block diagram of LLC Resonant Converter Fed Resistive Load using Fuzzy Controllet es, ee FLC works under the principle of FUZZY logics. Fuzzy logic provides conventional and us« friendly frontend to develop the control programs. Fuzzy controllers have the tendency 1 oscillate around the final operating point [18].It is the processes of converting the crisp dat into a linguistic member function. For the given input and output the mapping is formulate: There are seven linguistic member functions. They are NB, N, NS, ZE, PS, P, PB. It is dor by using Takagi-Suge no method [19-20]. Fuzzy logic is a very powerful tool and successfi implementation in every field. Fuzzy controller has several advantages over PI controller. Th fuzzy controller is more beneficial because of its simple design, robust, cheap, and multip! inputs and multiple outputs. Figure 3 Shows the Block diagram of LLC Resonant Convert Fed Resistive Load using Fuzzy Controller.
Figure 4 Block diagram of LLC Resonant Converter Fed Resistive Load using Neural Controller Figure 4 Block diagram of LLC Resonant Converter Fed Resistive Load using Neural Controller output data are important to obtain the desired output values. The data set is adequate and enough to confirm the constant operation. So there is no requirement of erudite after operation. In the Neural Controller the feedback system and pre-filters are multilayered. The Neural controller has different models such as Single input and multiple input models. The rear transmission procedure is used to run the constructed network. This procedure is commonly controlled transmission system for multilayered network. Figure 4 Shows the Block diagram of LLC Resonant Converter Fed Resistive Load using Neural Controller.
Figure 5 Simulated voltage response of LLC-RC under nominal load 100Q and input voltage 40V.
Figure 6 Simulated current response of LLC-RC under nominal load 100Q and input voltage 40V.
Figure 9 Simulated voltage response of LLC-RC under load disturbance (100Q-90Q-100Q) at t=0.55sec. Under Load Disturbance
Figure 8 Simulated current response of LLC-RC under line disturbance (40V-38V-40V) at t=0.55sec. Figure 7 Simulated voltage response of LLC-RC under line disturbance (40V-38V-40V) at t=0.55sec.
Under Line Disturbance
Under Nil Disturbance Figure 11 Simulated voltage response of LLC-RC under nominal load 100Q and input voltage 40V. 4.2. Fuzzy Controller
Figure 12 Simulated current response of LLC-RC under nominal load 100Q and input voltage 40V.
Under Line Disturbance
Under Nil Disturbance figure 17 Simulated voltage response of LLC-RC under nominal load 100Q and input voltage 40V.
Figure 18 Simulated current response of LLC-RC under nominal load 100Q and input voltage 40V.
Figure 22 Simulated current response of LLC-RC under load disturbance (100Q-90Q-100Q) at t=0.55sec.
Table 1 Comparison of various parameters of different controllers under nominal load 100Q.
Figure 23 Comparison graph of different parameters of various controllers under nominal load 100Q.
